Tokens

A token is a customizable formula that can be used to display a statistic, an expression, or an annotation in a text box.

Create a Token

Statistics

Statistic tokens display a statistic, or an array of statistics, from one or more files. The population and file choice can be static, or determined dynamically.

Howto

1. Click on the Create and edit token button () in the toolbar. A dialog will open.
2. In the dialog, click the plus next to Token, and name the token.
3. Under the Statistic dropdown, choose a statistic.
4. Under FCS Files, choose the FCS files that should be used, or Specify in the component to allow the text box options to determine the file(s). If you select multiple files, the results will be an array, with one value per file.
5. Under Population, choose the population to calculate statistics for or Specify in the component to allow the text box options to determine the population.
6. If the token uses a channel statistic, choose the channel or Specify in the component for text box options to determine the channel.
7. When finished creating tokens, click on Save tokens.

Annotations

Annotation tokens will display the value of an annotation for one or more files.

Howto

1. Click on the Create and edit token button () in the toolbar. A dialog will open.
2. Click the plus next to Token, and name the token.
3. In the dialog, for Kind, choose Annotation.
4. Choose the annotation for the token from the Annotation dropdown.
5. Select the file(s) to use, or select Specify in the component to determine the file in the text box options.
6. When finished creating tokens, click on Save tokens.

Expressions

Expressions combine functions and other named tokens together. They are written using standard syntax for Office Open XML, which mean that the same syntax for writing expressions in most spreadsheet software will work for expression tokens.

Available token expressions include:

Expression	Description
ISNA	Returns TRUE if the evaluated condition is N/A
AND	Returns TRUE if all conditions evaluated are met
IF	Evaluates a condition, and returns two values depending on whether the condition is true or false
IFS	Tests a series of conditions, and returns the value of the first condition that is true
NOT	Returns true if the condition evaluated is false
OR	Returns true if any of the evaluated conditions are true
ASINH	Inverse hyperbolic sine
LOG10	Calculates the base-10 logarithm
POWER	Raises a number to a power, equivalent of using the ^ operator
ROUND	Rounds a number to a specified number of digits
SINH	Hyperbolic sine
SQRT	Square root
SUM	Addition
AVERAGE	Mean
MAX	Maximum value
MIN	Minimum value
PERCENTILE.INC	Returns the value at the nth percentile of values, inclusive
QUARTILE.INC	Returns the value at the nth quartile of values, inclusive
STDEV	Standard deviation
STDEV.S	Standard deviation, calculated based on a sample; functionally identical to STDEV
CONCATENATE	Combines together text strings into one
EXACT	Compares two numbers or text strings and returns TRUE if they are identical
LEFT	Returns a specific number of characters from a text string, beginning at the left end of the string
RIGHT	Returns a specific number of characters from a text string, beginning at the right end of the string
MID	Returns a specific number of characters from a text string, starting from a specified number of characters into the string
LEN	Returns the number of characters in a text string
SEARCH	Tries to find a text string in another, and returns its position when found
REPLACE	Replaces part of a text string with different text; uses a specified position to determine where to begin replacement
SUBSTITUTE	Replaces part of a text string with different text; can replace text anywhere in the string
TEXTSPLIT	Splits a text string into multiple parts, based on a splitter character, like a dash or space
TRIM	Removes any spaces from the beginning or end of text, and removes adjacent spaces from the middle of strings

• See also: Office Open XML Standards at https://ecma-international.org/publications-and-standards/standards/ecma-376/

To create an expression token:

Howto

1. Click on the Create and edit token button () in the toolbar. A dialog will open.
2. In the dialog, for Kind, choose Expression.
3. Click the plus next to Token, and name the token.
4. Write an expression by combining functions and tokens. For convenience, available variables can be accessed from the dropdowns above the expression:
   1. Add functions by clicking on and choosing from the dropdown options.
   2. Add tokens by clicking on and choosing from the dropdown options.
5. When finished creating tokens, click on Save tokens.

Insert Tokens

To insert a token into a text box:

Howto

1. Select an existing text box, or insert a new one by clicking the button from the toolbar and placing the text box in the illustration.
2. Click on the dropdown in the toolbar. (This button is on the far right of the toolbar; depending on your browser window size, you may need to click before you can see it.)
3. Choose the token's name from the dropdown.

If the token uses Specify in the component, then the text box options will determine that variable. Like other illustration components, those options are available in the right sidebar when the text box is selected.

Tip

Batching can be used in text boxes to automatically change the component variables. Use populations, FCS files, or annotations as page variables, and then check batch next to the appropriate variable(s) in the text box options.

Examples

Dynamic quantile calculations

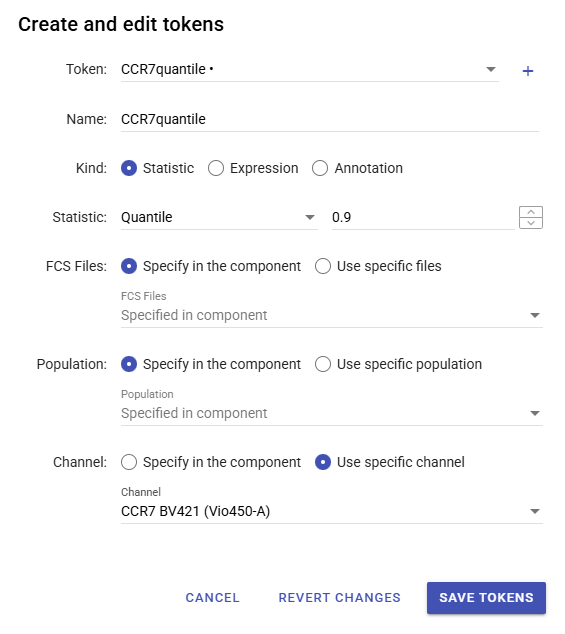

This token reports the 90th percentile of CCR7. The token dialog setup determined the statistic and channel, but used Specify in the component for the files and population:

Calculate CD4:CD8 Ratio

To calculate the ratio of CD4 to CD8 populations, first create two statistic tokens with the following settings:

• Statistic ⮞ Event Count
• FCS Files ⮞ Specify in the component
• Population ⮞ Choose CD4 for one token (“CD4count”) and CD8 for the other (“CD8count”)

Then create an expression token using the token names. In this case, the ratio can be calculated with the expression CD4count/CD8count.
